The KPK company designs, manufactures and supplies various stacker cranes. In addition to new equipment, f.KPK also reconstructs existing stackers.

Some types of our produced:

Ministacker crane KPK RZ 100 with manual stacking of loads

Ministacker crane RZ 100

Ministacker crane RZ 100

Technical parameters of the KPK RZ 100 ministacker crane:

  • load capacity of the stacker: load on the table 100 kg + max. operator weight 110 kg
  • aisle width: 1000 mm
  • wheelbase of the stacker: 2730 mm
  • lift height from the floor: 6150 mm
  • lifting speed: 2 to 20 m/min FC
  • travel speed of the stacker: 3 to 50 m/min FC
  • classification of the lift mechanism according to ISO / FEM: M5/2m
  • Dimensions of the working surface of the table: 885 mm x 818 mm

Stacker crane KPK RZ 1000 with telescopic forks

Stacker crane RZ 1000

Stacker crane RZ 1000

Technical parameters of the stacker crane KPK RZ 1000:

  • load capacity of the stacker: load on the forks 1000 kg + max. operator weight 150 kg
  • wheelbase of the stacker: 3600 mm
  • lift height from the bottom rail head: 5120 mm
  • lifting speed: 2 to 18 m/min FC
  • travel speed of the stacker: 8 to 84 m/min FC
  • fork extension speed (with load / without load): 10 m/min / 20 m/min
  • lifting mechanism classification according to ISO / FEM: M6 / 3m
  • track bottom rail type: S 24
  • type of upper track rail: profile  I 120

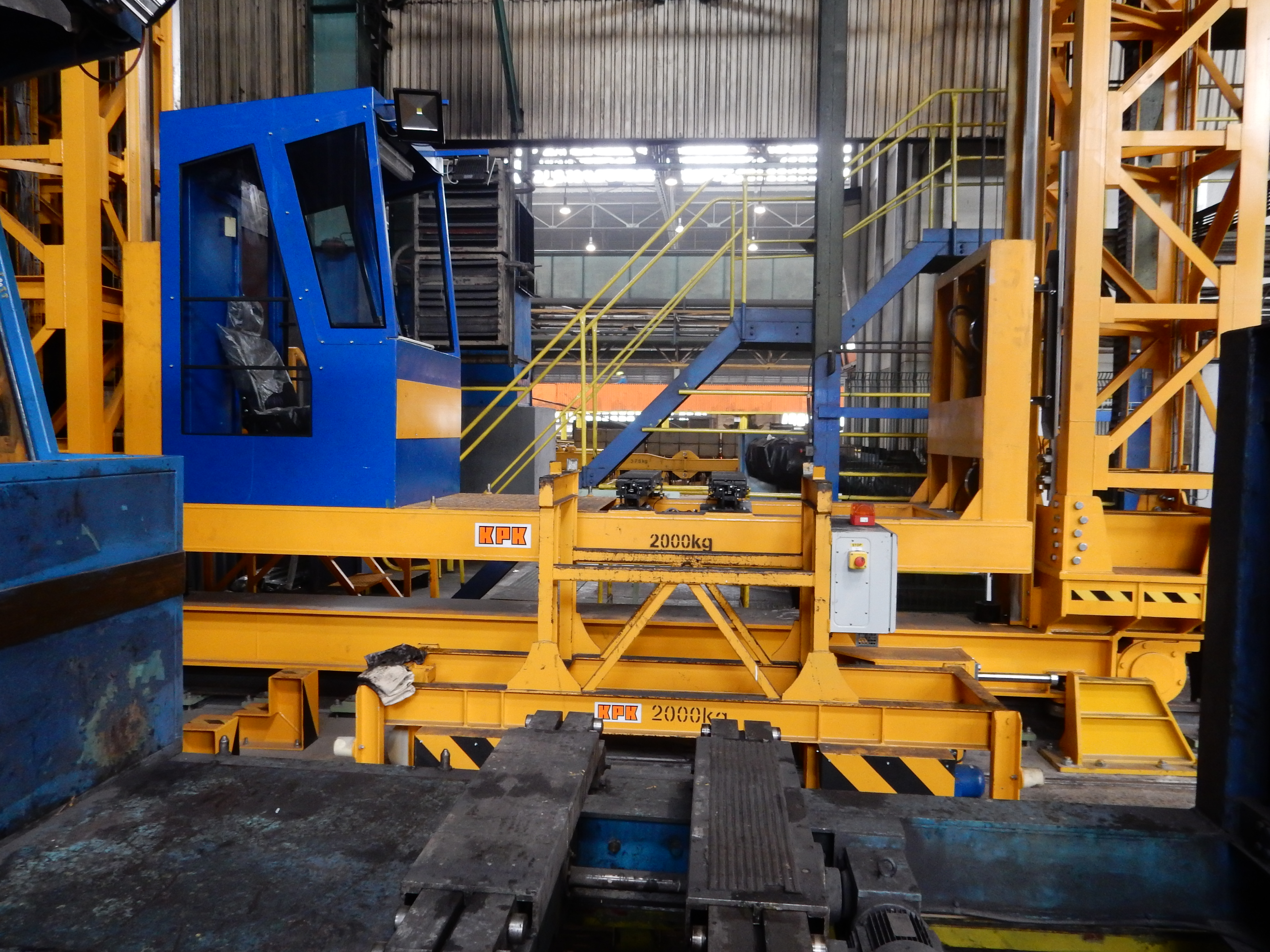

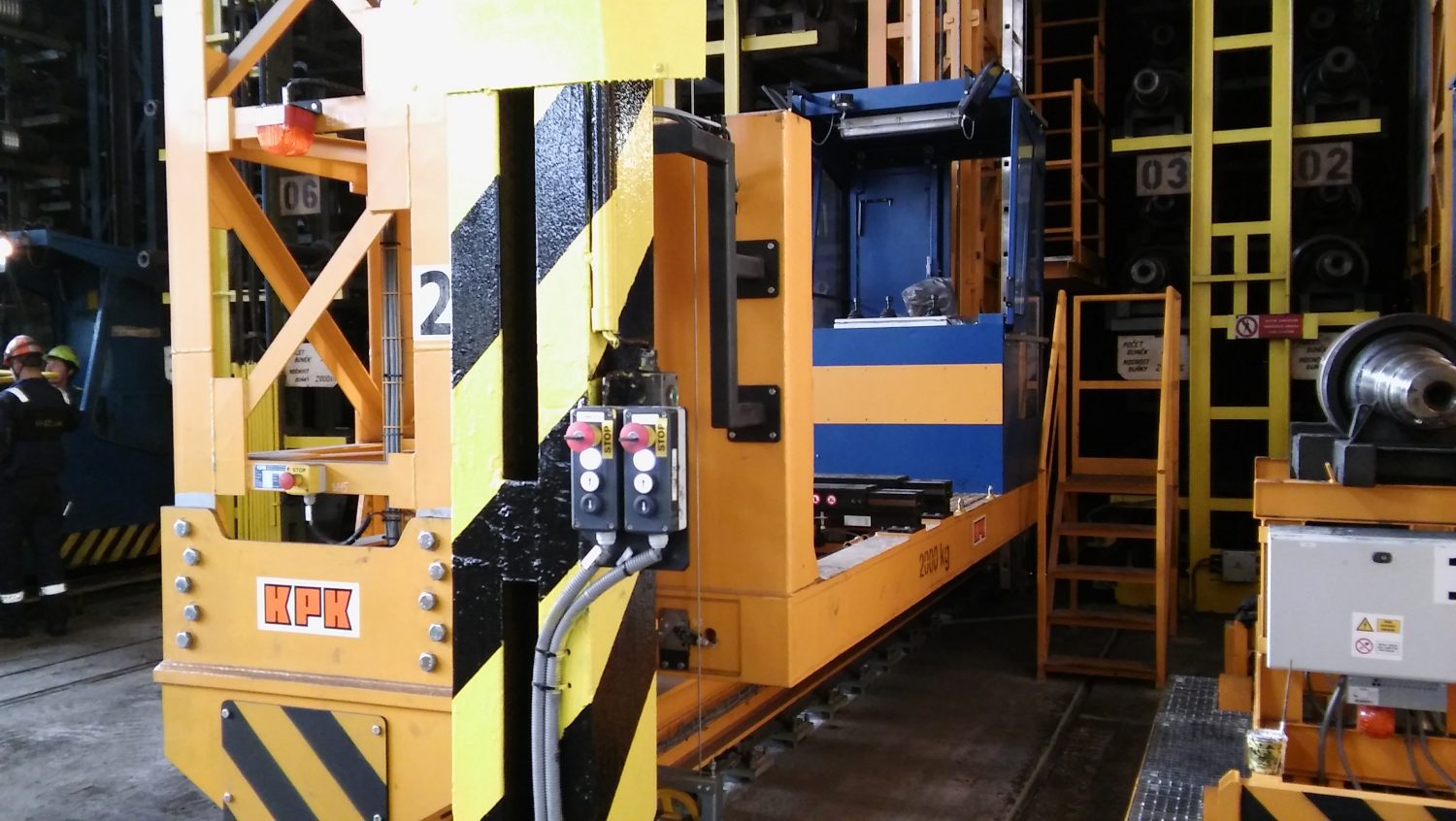

Stacker crane KPK RZ 2000 with telescopic forks

Stacker crane KPK RZ 2000

Stacker crane KPK RZ 2000

Technical parameters:

  • nominal load capacity of the table: 2000 kg + 1 operator
  • travel speed of the stacker: max. 140 m/min FC
  • lifting speed of the stacker: max. 16 m/min FC
  • fork extension speed: max. 10 m/min FC
  • maximum lift height of the forks from the lower rail: 11690 mm
  • minimum lift height of the forks from the lower rail: 937 mm

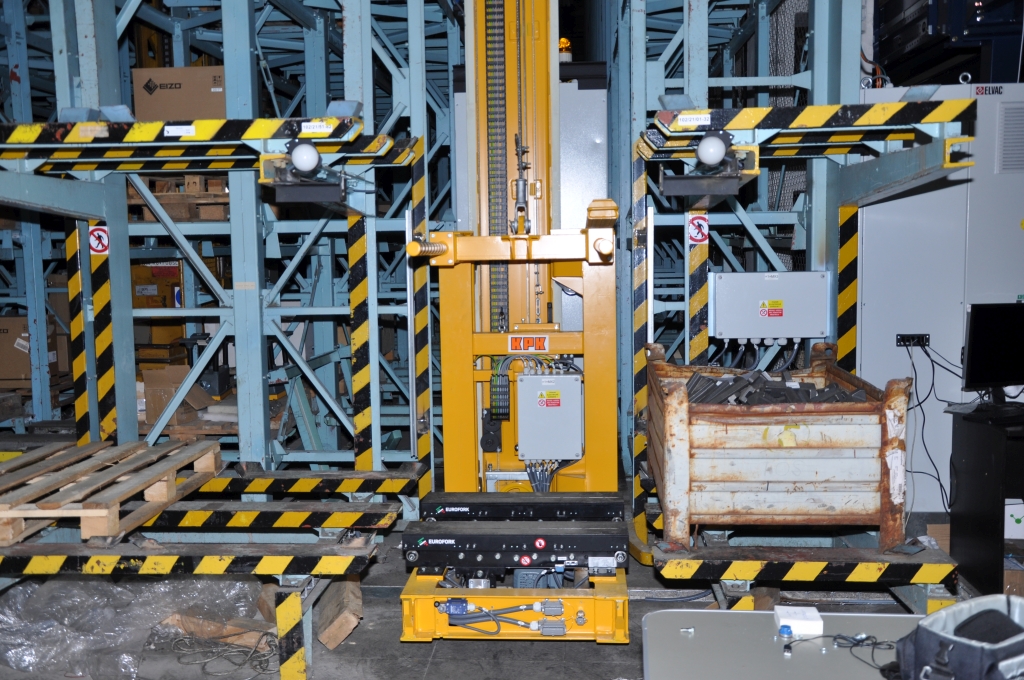

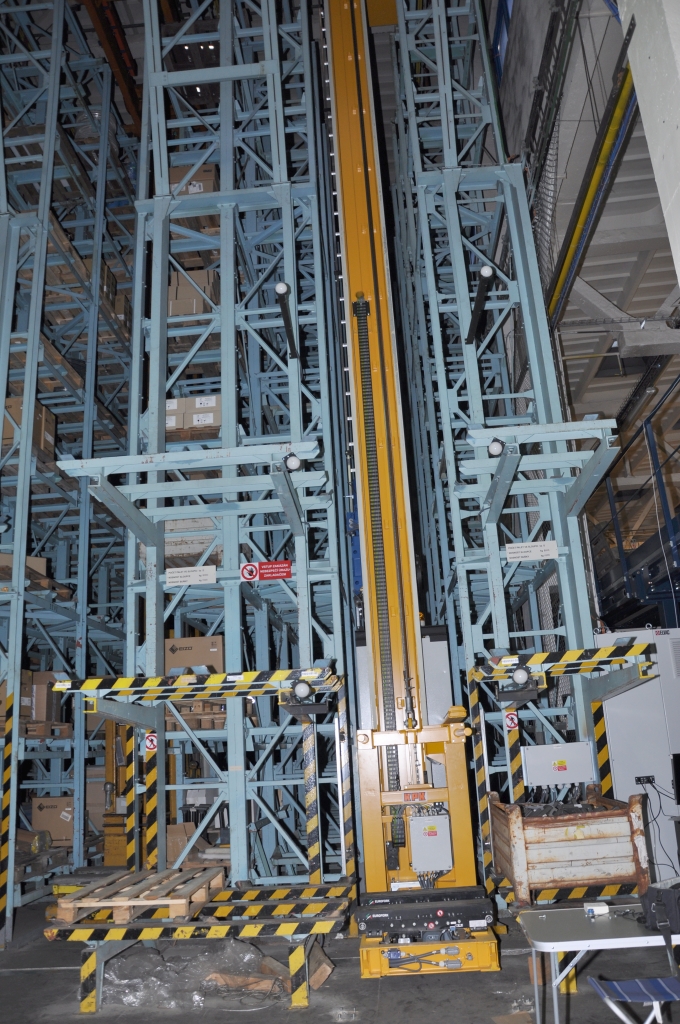

Stacker crane KPK RZ 1000 with automatic control

Stacker crane RZA 1000

Stacker crane RZA 1000

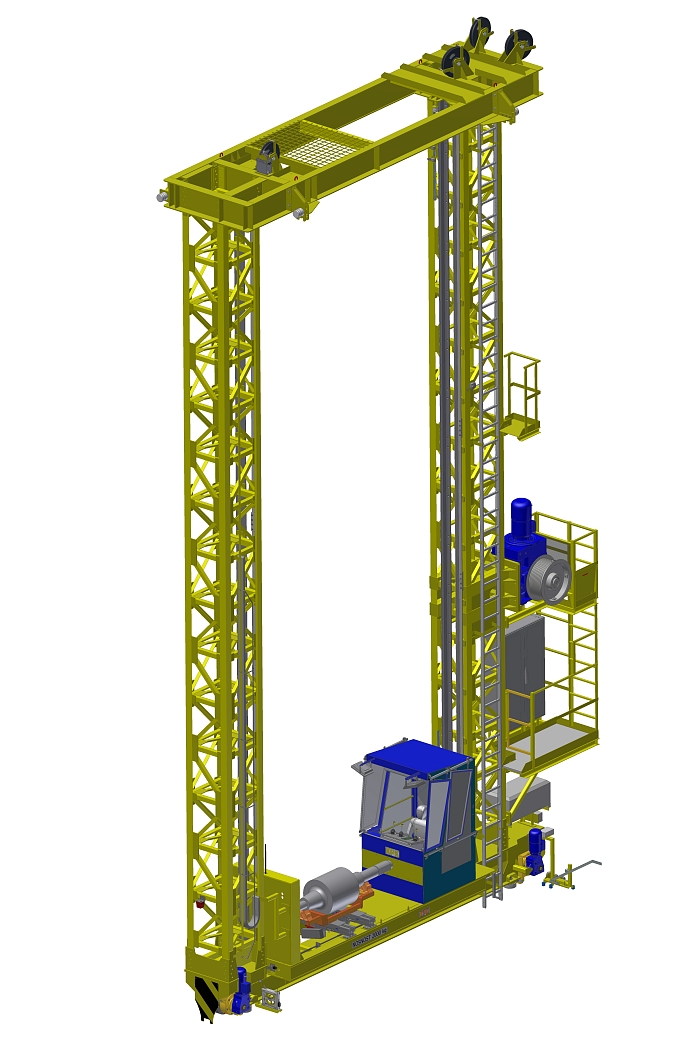

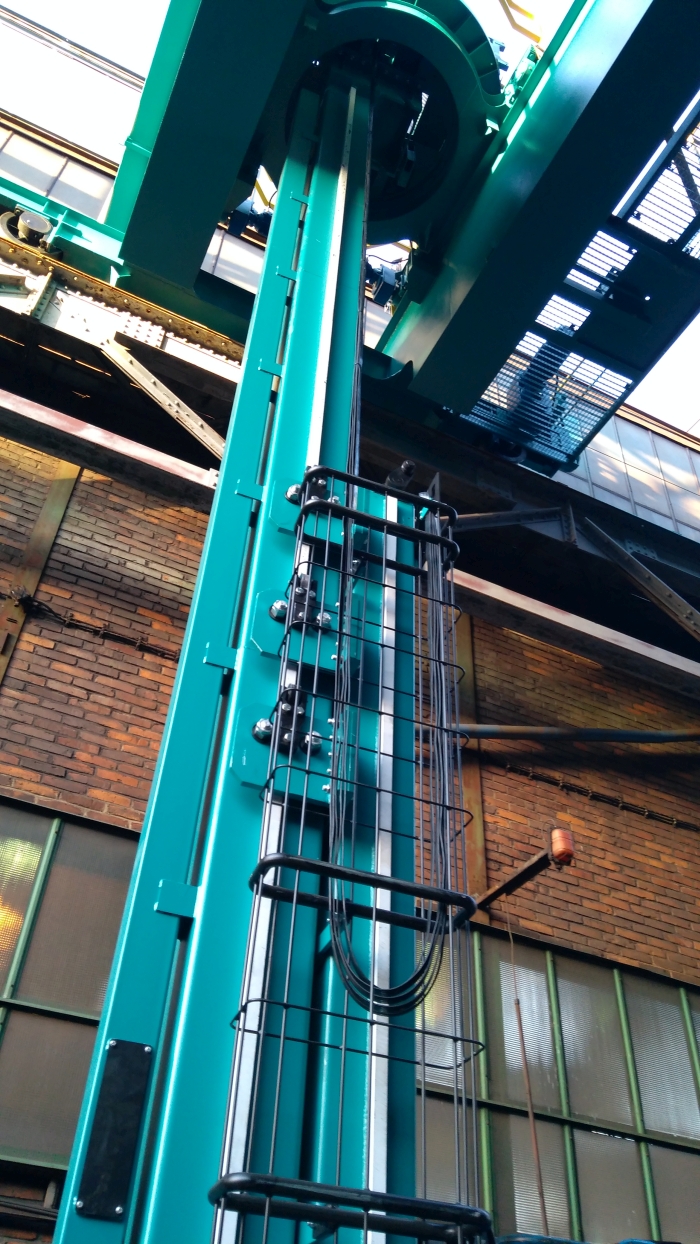

Stacker crane TAKRAF MZ 5t/28m with cabin - reconstruction

Stacker crane TAKRAF MZ 5t/28m

Stacker crane TAKRAF MZ 5t/28m

The stacker crane is intended for handling cylinders stored on cassettes from wagons to racks and from racks to a handling trolley.

Technical parameters:

  • load capacity of the crane on the forks: 5 000 kg
  • span: 28 000 mm
  • lifting height: 9090 mm
  • lifting speed: 8 / 1.8 m/min FC
  • speed of the trolley: 25 / 2.5 m/min FC
  • crane travel speed: 63 / 6.3 m/min FC
  • column rotation speed: 2 rev/min
  • total rotation angle of the column: 300 degrees
  • supply system 3 x 500V, 50Hz
  • lifting mechanism classification according to ISO: M5
  • total weight of crane:  51 200 kg

The reconstruction of the original TAKRAF crane consisted in the delivery of a new trolley with a new telescope, cabin and forks.  All drives on the crane were replaced and new electro components  was delivered. Of the existing crane, only the original steel construction of the bridge girders and endcarriages remained.
